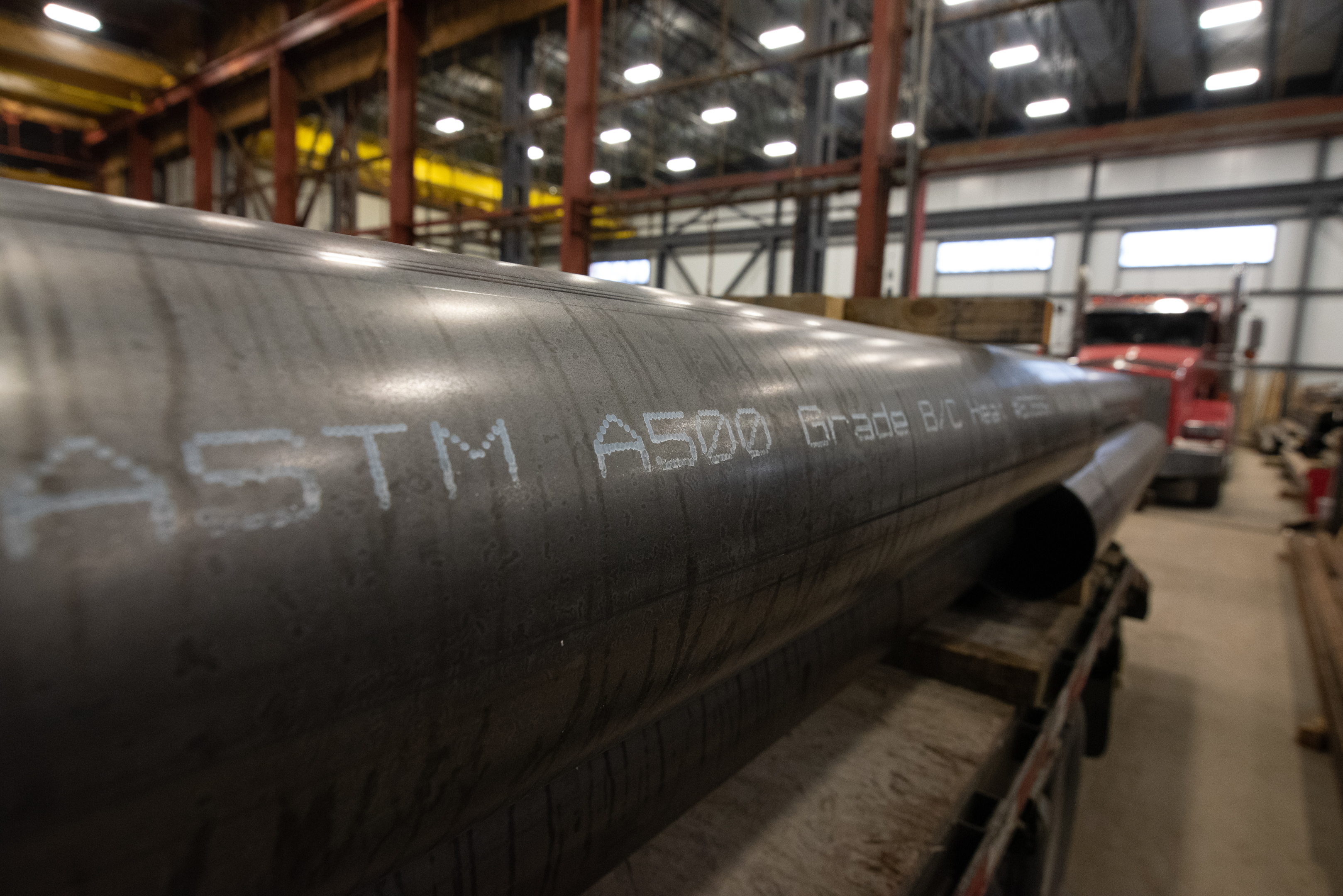

ASTM A500 Grade C are steel pipes with yield strength. Here’s a breakdown of the differences: Minimum Yield Strength: A500 Grade B: The minimum yield strength of A500 grade B steel pipe is 46,000 psi (or 315 MPa). A500 Grade C: The minimum yield strength of A500 grade C steel pipe is 50,000 psi (or 345 MPa).
The chemical composition and weight of ASTM A500 Grade B and C steels is another critical factor to consider.
ASTM A500 Grade Bhas been manufactured with a precise chemical composition that includes carbon (0.26%), manganese (1.35%), phosphorus (0.035%), and sulfur (0.035%). This composition gives steel pipe, it excellent welding properties and good ductility, making pipes, it is suitable for a wide range of construction applications.
ASTM A500 Grade Cconsists of carbon (0.23%), manganese (1.35%), phosphorus (0.035%), and sulfur (0.035%). This lower carbon content enhances copper steel in its joinability and formability, making it a preferred choice for applications requiring shaping or welding.
ASTM Grade B is a widely utilized structural steel tube grade noted for its strength and versatility. This grade carbon steel tubing has a minimum yield strength of 42,000 psi, and a minimum tensile strength of 58,000 psi, making it ideal for low-pressure structural applications.
It is also characterized by its excellent ductility, which allows it to be formed into a variety of shapes and sizes without cracking or breaking.
The specified wall thickness is crucial in ensuring the material’s suitability for various applications, with the maximum wall thickness at any point, including the weld seam, not varying by more than 10 percent from the specified value to maintain material strength and reliability.
Similarly, the minimum wall thickness must also adhere to this standard, ensuring the tube’s durability and performance meet the rigorous standards set forth by ASTM A500 Grade B. When considering shaped structural tubing grade, ASTM A500 Grade B stands out for its exceptional performance and reliability.
ASTM A500 Grade C, on the other hand, has a higher minimum yield strength of 50,000 psi, and a minimum tensile strength of 62,000 psi. This grade is known for its superior strength and toughness, making it suitable for high-pressure applications. It also exhibits good ductility, although not as pronounced as Grade B.
ASTM Grade B is composed of carbon, manganese, phosphorus, sulfur, and copper. The maximum carbon and manganese contents measured are 0.26% and 1.35% respectively.
ASTM A500 Grade structural steel pipe part C is similar to Grade pipe and tube B, but with slightly different maximum percentages. It contains a maximum of 0.23% carbon and 1.35% manganese. This results in a more full part that is stronger and more resilient.
At Altitube, we understand that choosing the ideal material is pivotal for the success of your project. Making a choice between ASTM Grade B and C is contingent upon your project’s specific requirements and conditions. Both grades offer unique features, and understanding these in the context of your project and specification can ensure optimal results.
Several factors should be considered when deciding between ASTM Grade B and C. One major factor is the mechanical properties of the material, including tensile strength, yield strength, and elongation. Another crucial aspect is the materials’ chemical composition, as it can significantly impact the material’s performance under various environmental conditions.
The type of wall thickness of pipe per construction project also plays a significant role in decision-making. ASTM Grade B is preferred for structural projects, while ASTM A500 Grade C is often used in more demanding applications due to its higher strength, tighter tolerances and toughness.
Lastly, cost implication nominal pipe size outside diameter is an essential consideration. Although the prices may vary, understanding your project needs will assist in making an informed decision.
The selection between ASTM Grade B and C can significantly influence costs of your project. Generally, Grade C is marginally more expensive than Grade B due to its higher mechanical properties, offering better performance under specific conditions.
Yet, this higher cost can be offset by the potential savings in maintenance or replacement costs over the long term due to its superior durability.
However, the cost should not be the only deciding factor when choosing between these two grades. It’s crucial to consider the specific requirements of your project, as the wrong choice could lead to a decrease in performance and potentially higher costs in the long run.
At Altitube, we understand that every project has unique needs. For instance, projects requiring high strength and weldability would benefit from ASTM structural steel pipe. This grade is ideal for structural supports, welded and seamless building columns, highway signs, and other load-bearing applications.
On the other hand, Grade C, with its superior tensile strength and yield strength, is recommended for cold formed welded high tolerances projects where structural strength and higher stress resistance is required.
We’ve seen successful application of Grade C in bridge construction, heavy equipment manufacturing, structural tubing, steel tubing, and even in shipbuilding. Hence, by understanding the features of both grades, we can make the right recommendations for your specific general structural purposes project needs.
